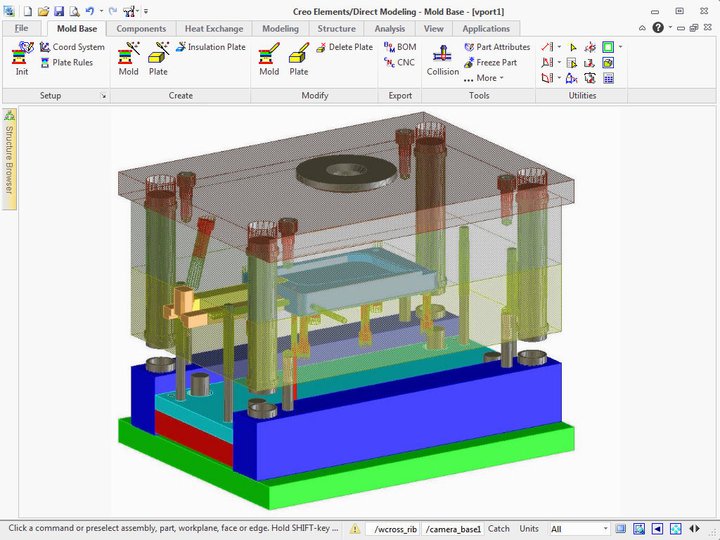

Creo Elements/Direct Mold Base introduces a new conсept, for creating complete mold base assemblies including all elements, accessoires and cooling channels from the standards components providers like HASCO, DME, PCS, FUTABA, DMS, MEUSBURGER, PEDROTTI, RADOURDIN, SIDECO, STRACK, MISUMI and others.
All the assemblies of plates, detailed technical drawings, 2D and 3D section views, dimensions, notes and BOM´s are created automatically.


• Leads mold designers through a logical and systematic approach to designing plastic injection molds
• Provides highly interactive preview menus that dynamically update when you modify parametrically driven components
• Starts the mold design process with standard and non-standard mold bases and 14 standard component catalogs
• Provides design advice by validating its parameters with your mold base assembly geometry
• Automates your tasks such as cutting plates and inserting new components and recalculating parameters
• Exports machining feature information directly to target Computer Aided Manufacturing (CAM) systems
