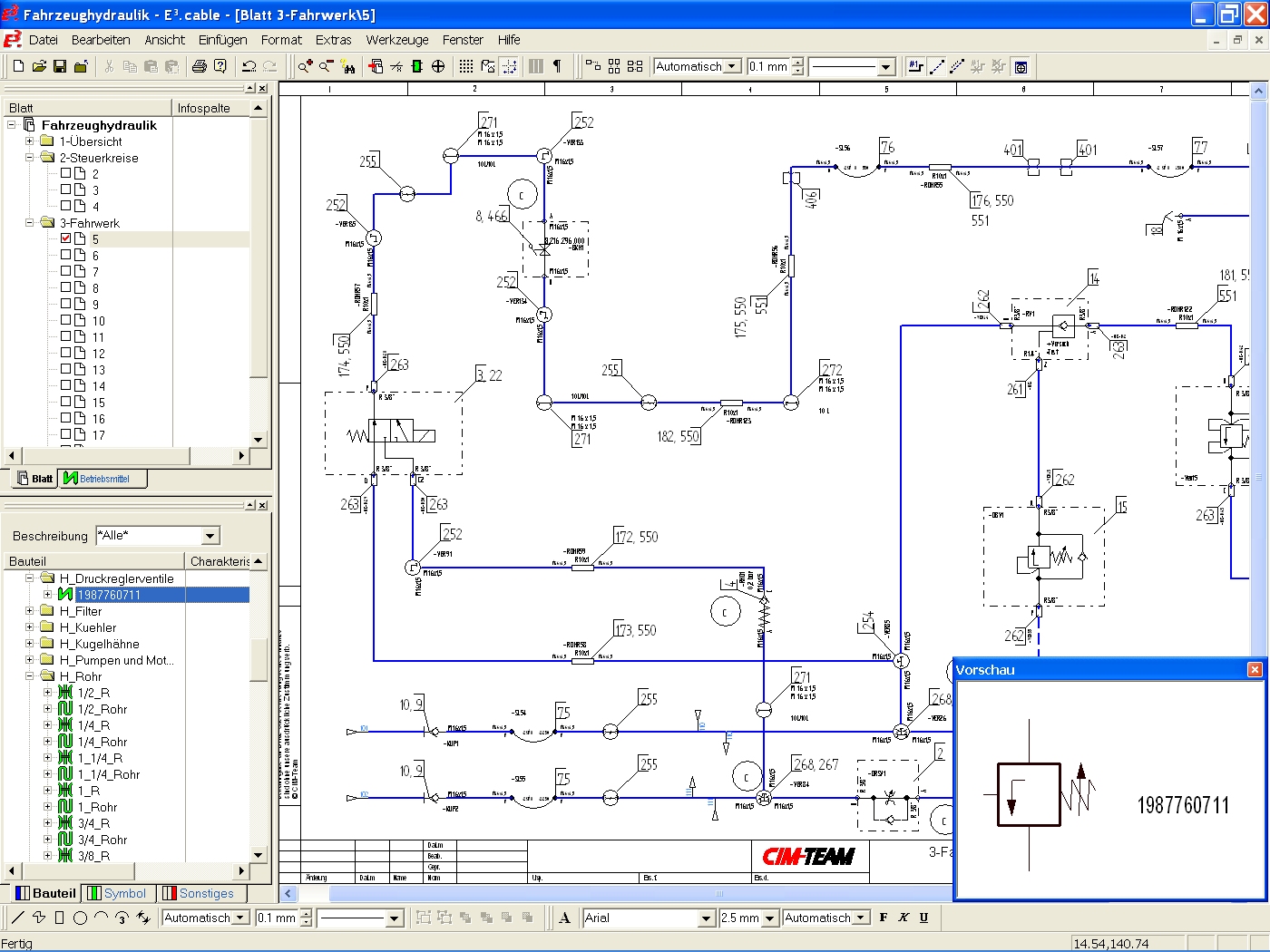

Eł.fluid has been designed for the development of hydraulic or pneumatic systems. It is the complete, easy-to-use solution for designing and documenting circuit diagrams for hydraulic, pneumatic and cooling drawings.
With Eł.fluid, all the required documents for subsequent production and user documentation are created.
  • Circuit diagrams can be created for electrical engineering, hydraulics and pneumatics, either separately or in combination
  • Automatic connections (Autoconnect)
  • Online functionality, e.g. cross-references
  • Modular design using predefined sub-circuits
  • Multiple automatic checks prevent user from making errors
  • Extensive symbol library included

The Fluid drawing is like all Eł.series documents, always correct. Regardless of where a modification may have been made, everything is synchronized online.
