On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to ProE | parameter value | ProE: export to OSDM |
parameter value | |||
---|---|---|---|
OUTPUT_MODE | TRIMMED
PARAMETRIC |
|
|
FILE_FORMAT | HP-UX | ||
COORDINATE_SYSTEM | GLOBAL | ||
ACCURACY | 0.001 (*1) | ||
PCV_ACCURACY | 0.01 | ||
PCV_POLYLINE | NO | ||
NORMALIZE_ARC_PARAM | NO | ||
CLOSE_PARAM_SPACE | YES | ||
GEO_REPRESENTATION_NURBS | NO | ||
AUTHOR | ...... |
|
|
ORGANIZATION | ...... |
|
|
SENDING_PRODUCT_ID | ...... | ||
RECEIVING_PRODUCT_ID | ...... |
|
|
START_SECTIONDUCT_ID | ...... |
|
|
OSDM: import from ProE (*7) | parameter value | ProE: import from OSDM | parameter value |
Surface | ON |
|
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | OFF |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to SDRC | parameter value | SDRC: export to SD
(SD version 6.0 Beta 1.1, I-DEAS Master Series 5, on HP-UX 10.20 ) |
parameter value |
OUTPUT_MODE | TRIMMED
PARAMETRIC |

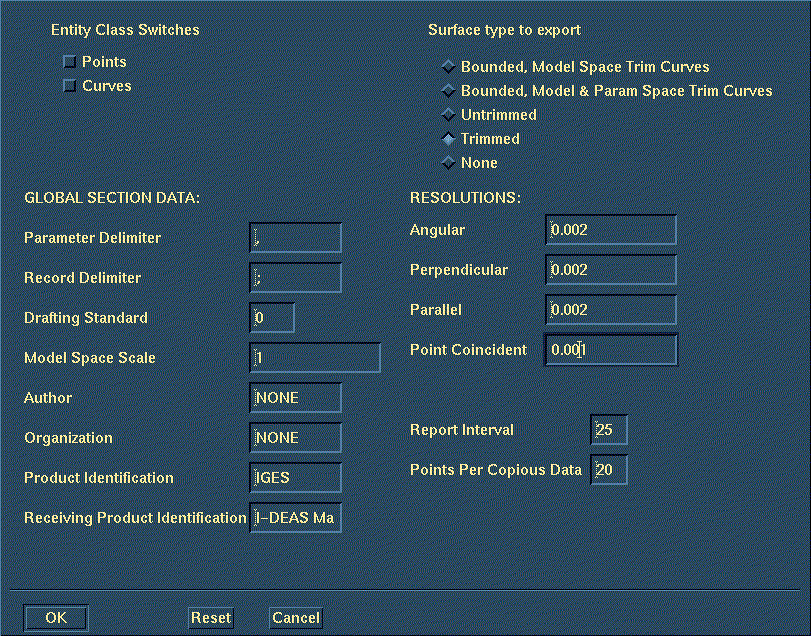

Entity class switches
Points
Curves
|
Off Off |
ACCURACY | 1e-6 |
Surface type to export
Trimmed (142/144)
|
ON |
PCV_ACCURACY | 1e-4 |
|
|
PCV_POLYLINE | NO |

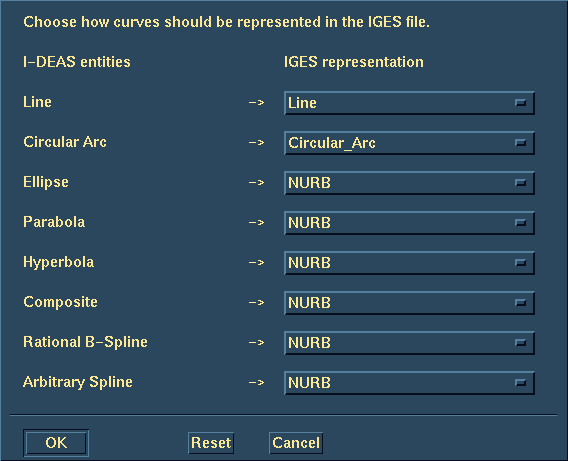

Line
Circular Arc
other 2D geometry
|
(defaults are NURBS)
Line Circular Arc default (NURBS) |
NORMALIZE_ARC_PARAM | NO |

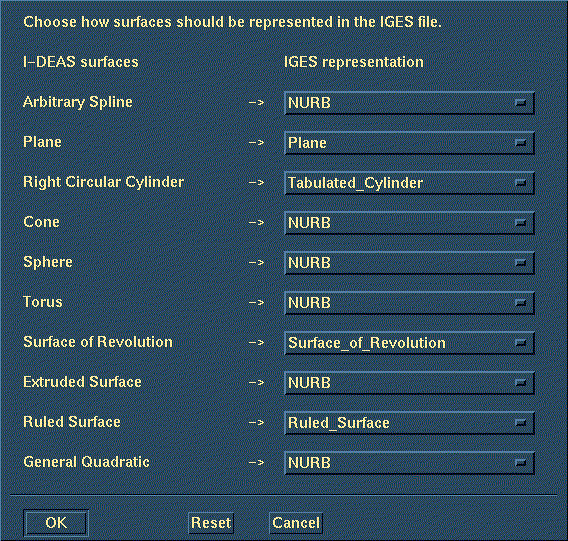

Plane
Right Circular Cylinder
Sphere
Surface of Revolution
Ruled Surface
Other surfaces
|
(defaults are NURBS)
Plane Tabulated Cylinder [*12] default (NURBS) Surface of Revolution Ruled Surface default (NURBS) |
CLOSE_PARAM_SPACE | NO |
|
|
GEO_REPRESENTATION_NURBS
or GEO_REPRESENTATION_NURBS |
NO (*6)
. YES (*6) |
|
|
OSDM: import from SDRC | parameter value | SDRC: import from OSDM | parameter value |
use default settings
w./w.o. file accuracy |
Select "CATIA flavour" |
|
|
stitch surfaces
show and clean free edges check by creating a cross-section |
|
||
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to EDS-UG | parameter value | EDS-UG: export to OSDM | parameter value |
use default settings |
|
Crosshatching | Copious Data |
eventually: |
|
Cone | B-Surf |
ACCURACY | 1e-4 | Cylinder | B-Surf |
|
or better (*9) | Sphere | B-Surf |
|
|
Surface of Revolution | B-Surf |
|
|
Tabulated Cyl. | B-Surf |
|
|
Trimmed Surface | Trimmed Surface |
|
|
Periodic Surface | Periodic Surface |
|
|
Solid Bodies | Grouped Geometry |
|
|
Assembly | Fully Nested
Subfigure Definition |
|
|
Pattern | Subfigure Definition |
|
|
UG Line Font | IGES Line Font Number |
|
|
UG Color Definition | IGES Color Number |
OSDM: import from EDS-UG | parameter value | EDS-UG: import from OSDM | parameter value |
use default settings |
|
use default settings |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to CV | parameter value | CV: export to OSDM | parameter value |
use default settings |
|
create # 141 / # 143 | - bounded
- unsew |
write out the model only | - model | ||
write all geometry as nurbs | - nurbs | ||
OSDM: import from CV | parameter value | CV: import from OSDM | parameter value |
Surface | ON |
|
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | ON |
|
|
File Accuracy | ON |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to CATIA | parameter value | CATIA: export to OSDM | parameter value |
use default settings (*3) |
|
keep 0.01 accuracy or better ! | (*8) |
OSDM: import from CATIA | parameter value | CATIA: import from OSDM | parameter value |
Surface | ON | use default settings |
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | ON |
|
|
File Accuracy | ON
(or 0.01) |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to STRIM | parameter value | STRIM export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED
PARAMETRIC |
use default settings |
|
ACCURACY | 0.001 (*1) |
|
|
PCV_ACCURACY | 0.001 |
|
|
PCV_POLYLINE | NO |
|
|
NORMALIZE_ARC_PARAM | NO |
|
|
CLOSE_PARAM_SPACE | YES |
|
|
OSDM: import from STRIM | parameter value | STRIM: import from OSDM | parameter value |
Surface | ON | use default settings |
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | ON (*3) |
|
|
File Accuracy | ON
(or 0.001) |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to Euclid | parameter value | Euclid: export to OSDM | parameter value |
use default settings |
|
use default settings
Avoid output of offset faces (*11) |
|
OSDM: import from Euclid | parameter value | Euclid: import from OSDM | parameter value |
use default settings |
|
NOTE:
The size of the IGES file must not exeed 2 (two) MB |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to AutoCAD | parameter value | AutoCAD: export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED | "explode" the part entirely |
|
FILE_FORMAT | DOS | before creating the IGES file |
|
COORDINATE_SYSTEM | GLOBAL | (If you don't - |
|
ACCURACY | 1e-6 (*9) | OSDM wouldn't import anything ) |
|
OSDM: import from AutoCAD | parameter value | AutoCAD: import from OSDM | parameter value |
Surface | ON | use default settings |
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | OFF |
|
|
File Accuracy | ON
(or 0.01) |
|
|
If unsuccessful try:
Trm Param If still unsuccessfull |
.
ON (*4) |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to Intergraph | parameter value | Intergraph: export to OSDM | parameter value |
use default settings |
|
use default settings |
|
OSDM: import from Intergraph | parameter value | Intergraph: import from OSDM | parameter value |
Surface | ON | use default settings |
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | OFF |
|
|
File Accuracy | ON
(or less accurate) |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to CADKEY | parameter value | CADKEY: export to OSDM | parameter value |
use default settings |
|
Entity 126
(Rational B-Spline curve) is unsupported in CADKEY base system |
To read OSDM IGES files
CADKEYs option "Advanced surfacing" has to be used. |
OSDM: import from CADKEY | parameter value | CADKEY: import from OSDM | parameter value |
use default settings |
|
See "# 126 support" above |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to Sejour | parameter value | Sejour: export to OSDM | parameter value |
use default settings (*3) |
|
keep 0.01 accuracy or better ! |
|
OSDM: import from Sejour | parameter value | Sejour: import from OSDM | parameter value |
Surface | ON | use default settings |
|
Connect | ON |
|
|
Check Part | ON |
|
|
Trm Param | ON |
|
|
File Accuracy | ON
(or 0.01) |
|
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to Anvil5000 | parameter value | Anvil5000: export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED
PARAMETRIC |
no recommendation yet |
|
FILE_FORMAT | HP-UX |
|
|
COORDINATE_SYSTEM | GLOBAL |
|
|
ACCURACY | 1e-6 |
|
|
PCV_ACCURACY | 0.01 |
|
|
PCV_POLYLINE | NO |
|
|
NORMALIZE_ARC_PARAM | YES |
|
|
CLOSE_PARAM_SPACE | YES |
|
|
GEO_REPRESENTATION_NURBS | YES |
|
|
OSDM: import from Anvil5000 | parameter value | Anvil5000: import from OSDM | parameter value |
no recommendation yet |
|
no recommendation yet |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to Mastercam | parameter value | Mastercam: export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED
PARAMETRIC |
no recommendation yet |
|
FILE_FORMAT | HP-UX |
|
|
COORDINATE_SYSTEM | GLOBAL |
|
|
ACCURACY | 1e-6 |
|
|
PCV_ACCURACY | 0.01 |
|
|
PCV_POLYLINE | NO |
|
|
NORMALIZE_ARC_PARAM | YES |
|
|
CLOSE_PARAM_SPACE | YES |
|
|
GEO_REPRESENTATION_NURBS | YES |
|
|
OSDM: import from Mastercam | parameter value | Mastercam: import from OSDM | parameter value |
no recommendation yet |
|
no recommendation yet |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to SolidTools | parameter value | SolidTools: export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED | no recommendation yet |
|
FILE_FORMAT | HP-UX |
|
|
COORDINATE_SYSTEM | GLOBAL |
|
|
ACCURACY | part accuracy |
|
|
PCV_ACCURACY | 0.001 |
|
|
PCV_POLYLINE | NO |
|
|
NORMALIZE_ARC_PARAM | YES |
|
|
CLOSE_PARAM_SPACE | YES |
|
|
GEO_REPRESENTATION_NURBS | YES or NO |
|
|
OSDM: import from SolidTools | parameter value | SolidTools: import from OSDM | parameter value |
no recommendation yet |
|
no recommendation yet |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to SolidWorks | parameter value | SolidWorks: export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED
PARAMETRIC |
no recommendation yet |
|
FILE_FORMAT | DOS |
|
|
COORDINATE_SYSTEM | GLOBAL |
|
|
ACCURACY | part accuracy (0.001) |
|
|
PCV_ACCURACY | 0.001 |
|
|
PCV_POLYLINE | NO |
|
|
NORMALIZE_ARC_PARAM | NO |
|
|
CLOSE_PARAM_SPACE | YES |
|
|
GEO_REPRESENTATION_NURBS | YES |
|
|
OSDM: import from SolidWorks | parameter value | SolidWorks: import from OSDM | parameter value |
no recommendation yet |
|
no recommendation yet |
|
On OSDM side
(export/import) |
|
On 2nd CAD system
(export/import) |
Back to Contents |
---|---|---|---|
OSDM: export to Alias | parameter value | Alias: export to OSDM | parameter value |
OUTPUT_MODE | TRIMMED
PARAMETRIC |
see: Special recommendations
on data transfer to and from Alias / Studio |
|
FILE_FORMAT | HP-UX |
|
|
COORDINATE_SYSTEM | GLOBAL |
|
|
ACCURACY | part accuracy (0.001) |
|
|
PCV_ACCURACY | 0.001 |
|
|
PCV_POLYLINE | NO |
|
|
NORMALIZE_ARC_PARAM | NO |
|
|
CLOSE_PARAM_SPACE | YES |
|
|
GEO_REPRESENTATION_NURBS | YES |
|
|
OSDM: import from Alias | parameter value | Alias: import from OSDM | parameter value |
Import accuracy |
file accuracy or 0.001 |
no recommendation yet |
|
|
Remarks |
---|---|
(*1) | it is recommended
to reduce your OSDM parts accuracy to 0.001
ProE sometimes has difficulties to handle high accurate models or models containing very small geometry. |
(*2) | For solid modeling systems select: Trm Param OFF
first
If results are not satisfying select: Trm Param ON and retry |
(*3) | For pure surface modelers select: Trm Param ON |
(*4) | On importing AutoCAD files
the check of self intersecting surfaces might cause problems to switch off this check : (set-iges-import-check-selfint t) to enable the check again: (set-iges-import-check-selfint NIL) |
(*5) | ProE -> OSDM:
in generel IGES #128 give best results for OSDM import. If the part contains surfaces of revolution where a spline has been rotated - default settings create better results. |
(*6) | for OSDM < 4.0 use:
(SET-IGES-ALL-SF-NURBS "YES") to select NURBS export (SET-IGES-ALL-SF-NURBS "NO") to deselect NURBS export for OSDM 4.0 ff: in "Save IGES" select "Settings" menu and enable "NURBS Geometry" |
(*7) | If the file contains INCH units
select "customer resolution setting" |
(*8) | CATIA works with relative
accuracy.
That means if you specify an accuracy of 0.01, a small model should be accurate enough to be read successfully by OSDM, while the size of a large model "scales" the accuracy to values inacceptable by OSDM. When projecting curves onto surfaces, CATIA normally uses this relative accuracy. If the value is too bad for OSDM, it leaves the face untrimmed - or if they are analytical surfaces ignores them. (ref.: Supported IGES entities ) Note: This is matter has to be regarded during the design cycle. |
(*9) | Of course the accuracy of a part to export is depending
on the part itself.
It can be reduced (if no smaller geometry than the new accuracy value is used in the model) but cannot be increased. If you know in advance that a part has to be exchanged with partners using different CAD products, it is highly recommended to agree on a common procedure and accuracy verify the definitions with small test objects before you start modeling. This is the very best way to achieve best possible transfer rates ! |
(*10) | You can influence the accuracy of intersection
curves (of faces) during IGES output in ProE by modifying the parameter:
Iges_out_trim_curve_deviation .
By default this value is set to the parts accuracy. i.e the part accuracy is 0.012 mm you might want to recalculate the intersection of faces during IGES file generation to 0.001 and you can do this by setting Iges_out_trim_curve_deviation to the new value of 0.001. Note: This does not mean
that your whole part will be recalculated in better accuracy !
Nevertheless more accurate intersection curves can essentially increase your transfer success ! This works very similar on OSDM IGES output;
|
(*11) | For data transfer to OSDM offset
faces must be avoided
Euclid / Matra offers a transformation of these faces to ordinary "Bezier" faces before performing the IGES translation. In order to do so, the Euclid 3 user has to interactively perform the following operations.
|
(*12) | If Sphere=NURBS (default) is kept,
a (complete) sphere is not transferred correctly.
It is read into OSDM without any error message, but is never displayed. (Wrong trimming ?) If Sphere=Surface of revolution is selected, the complete
sphere is transfered correctly but
|
